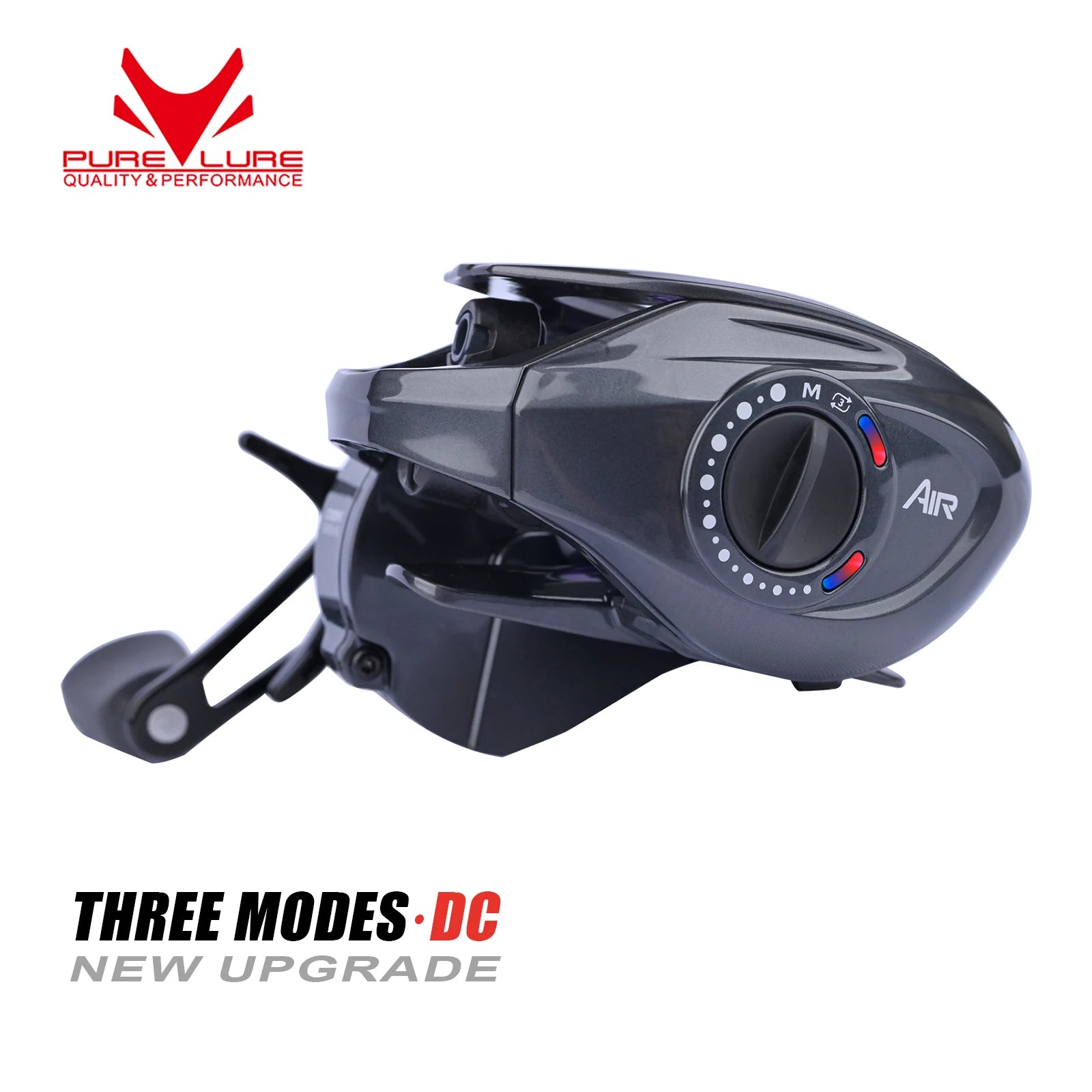

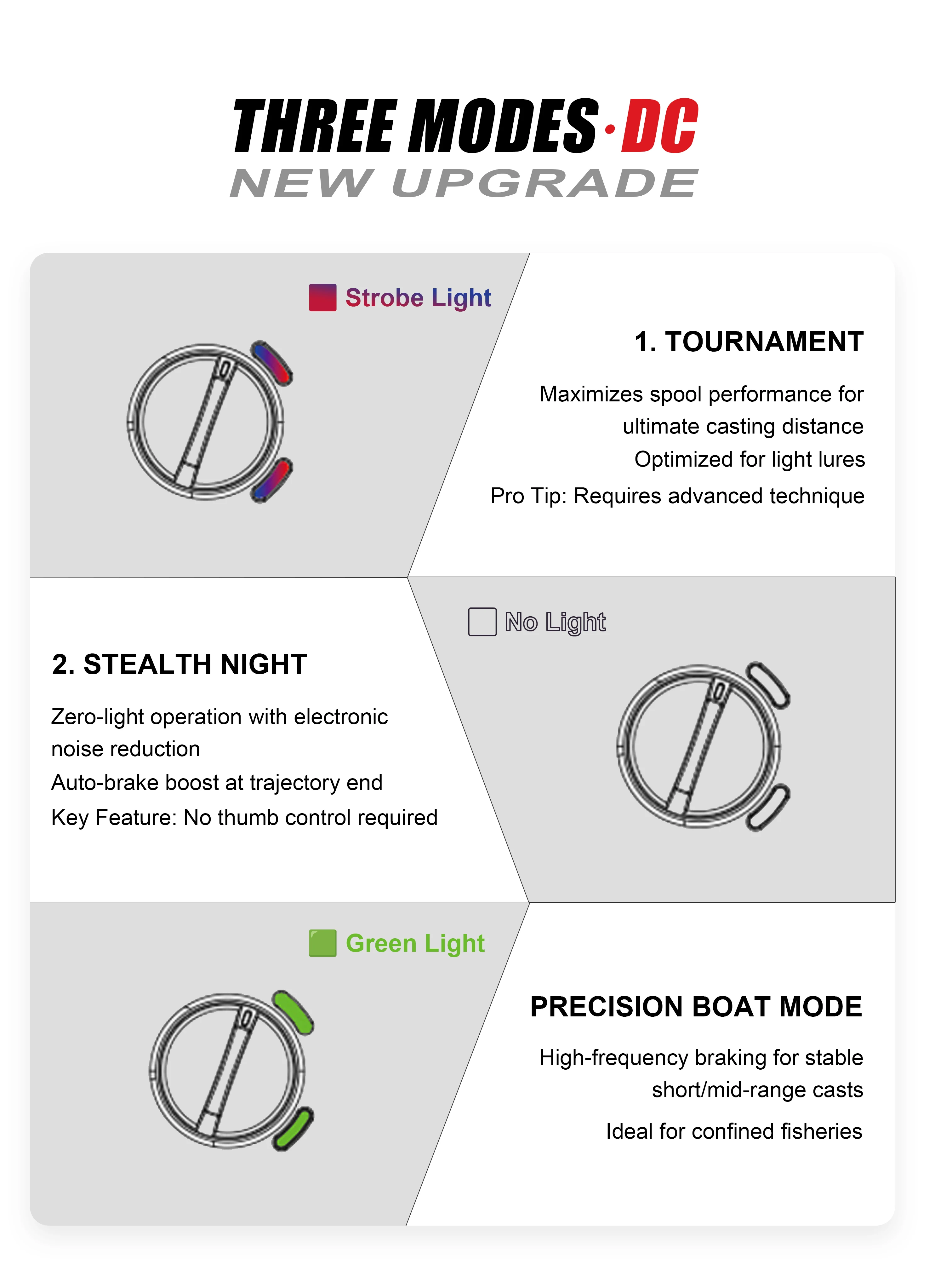

THREE MODES·DC
LONG DISTANCE MODE: Flashing Colored Lights
SILENT MODE: Lights Off
CLOSE RANGE MODE: Green Lights

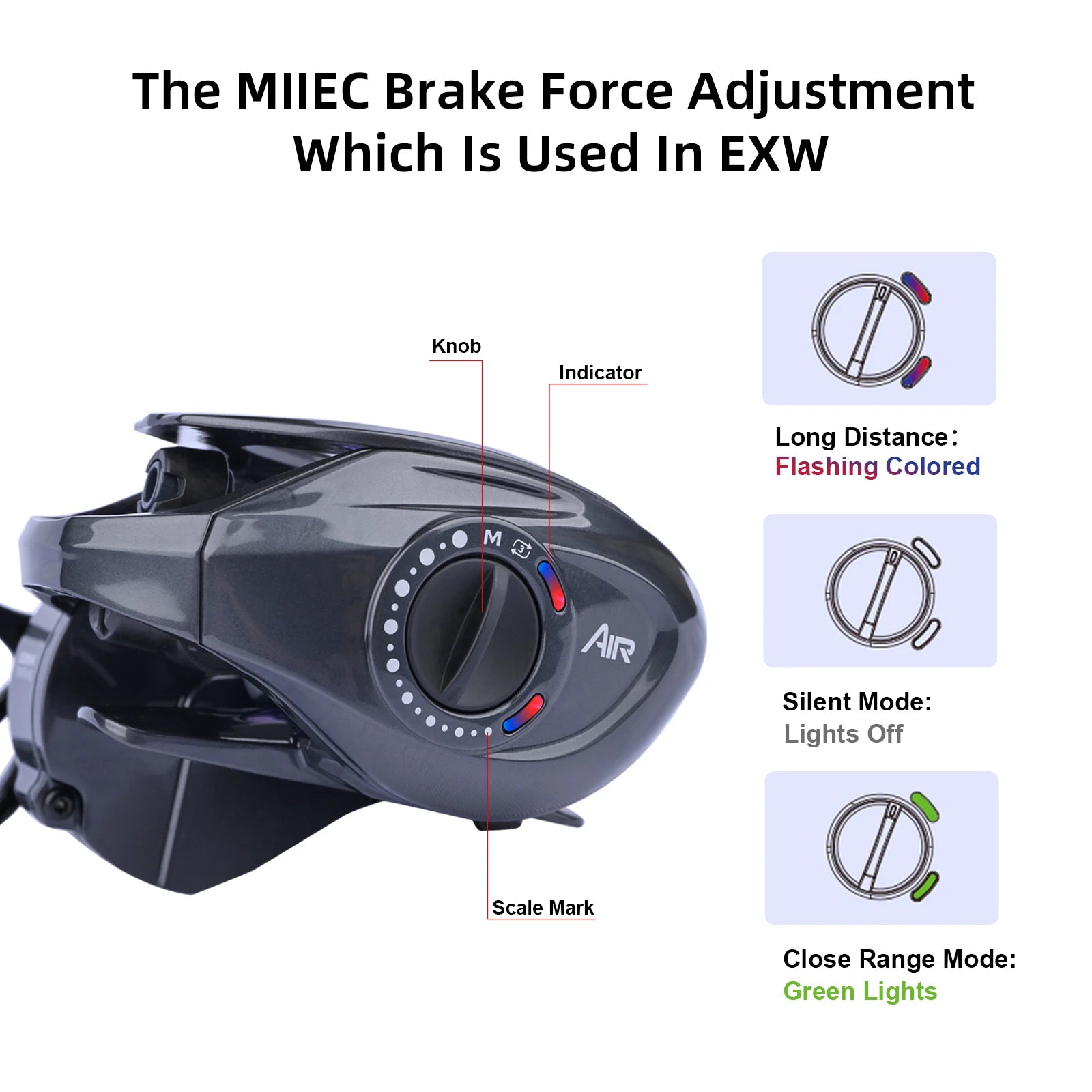

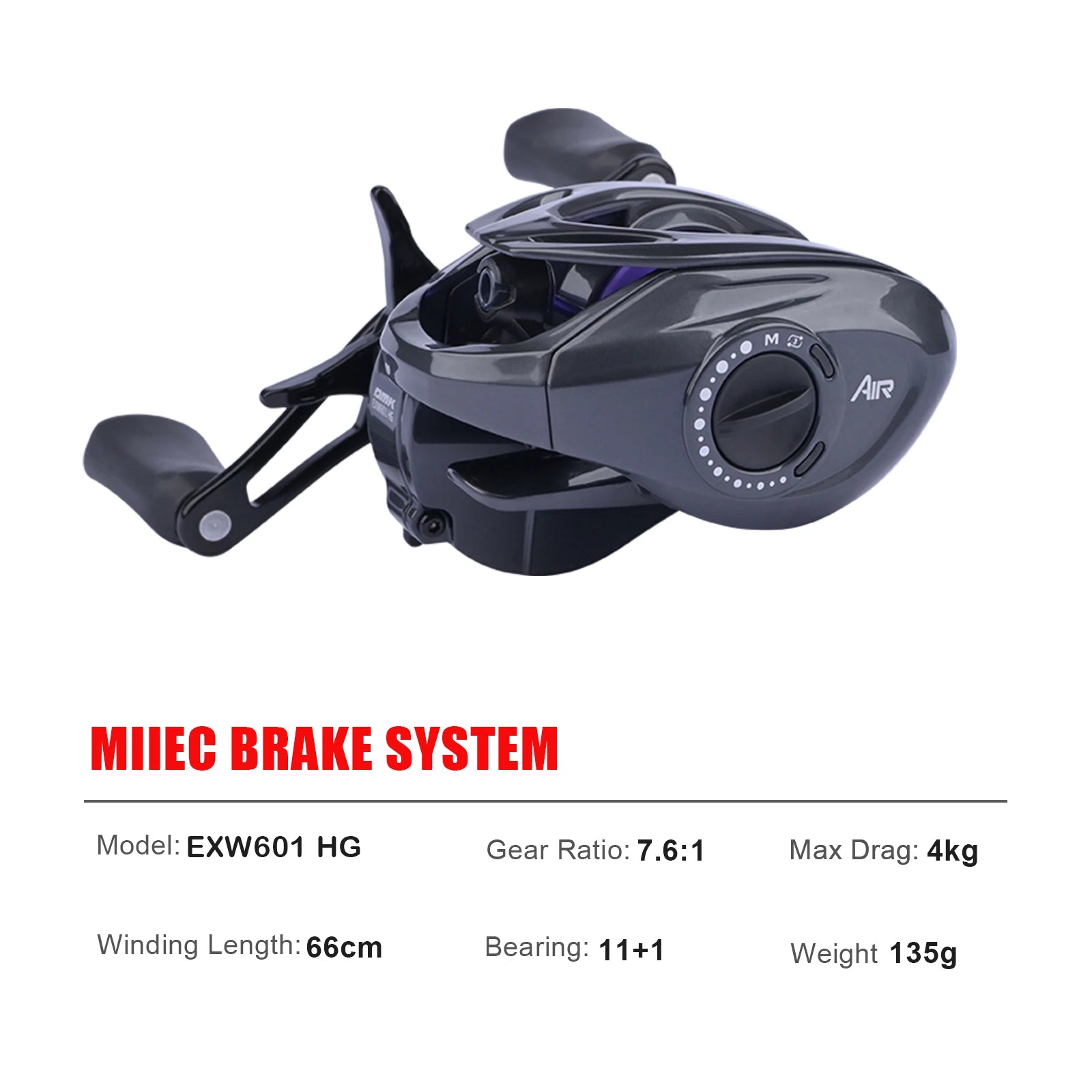

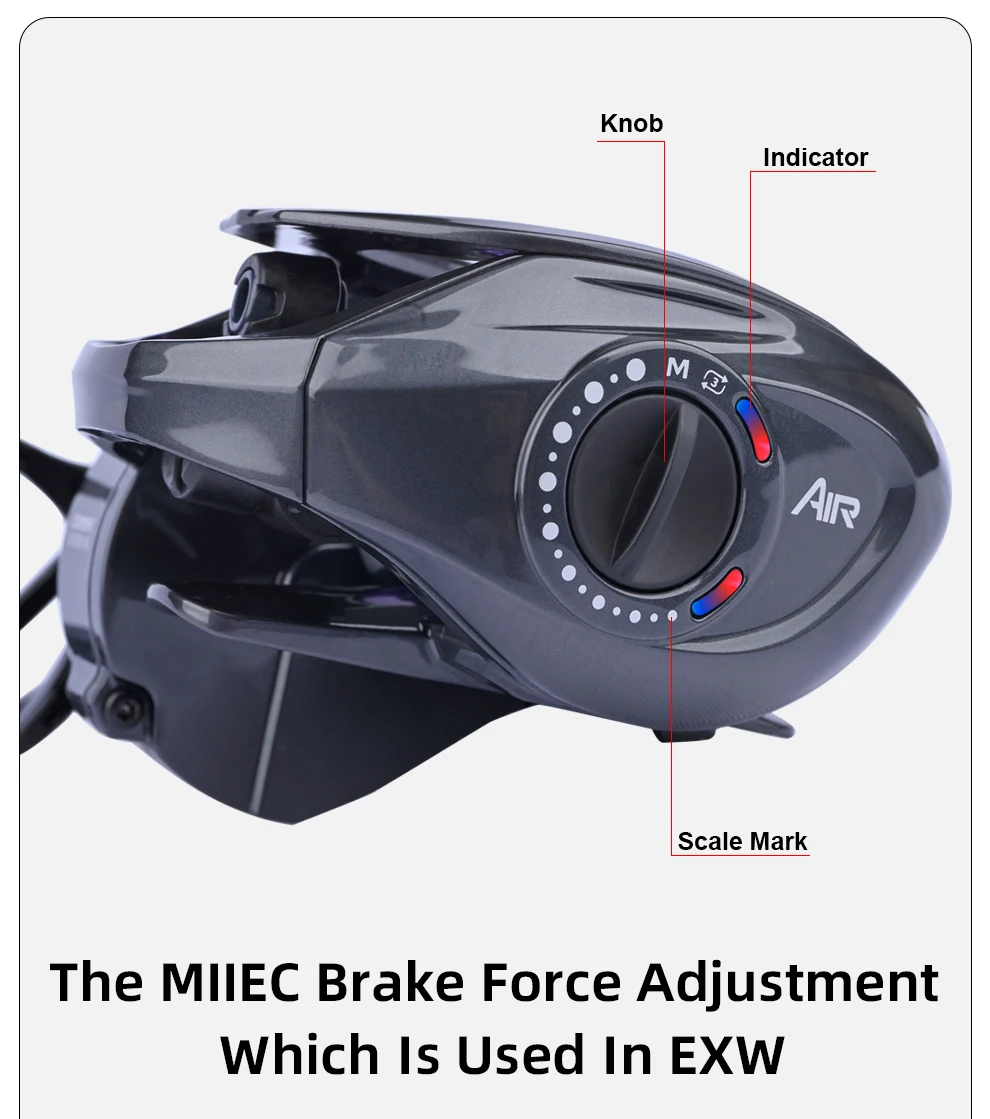

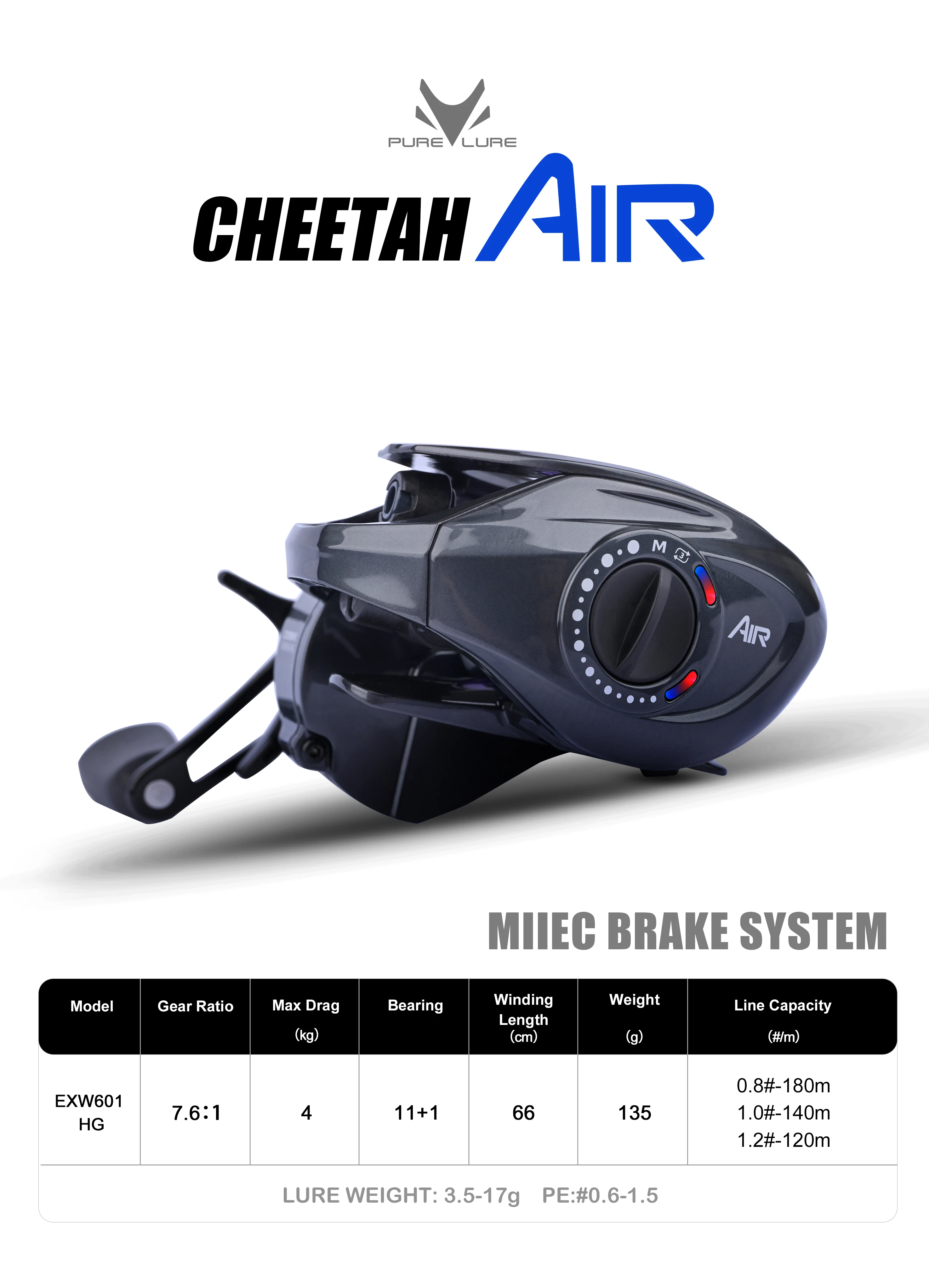

The MIIEC Brake Force Adjustment which is Used in EXW

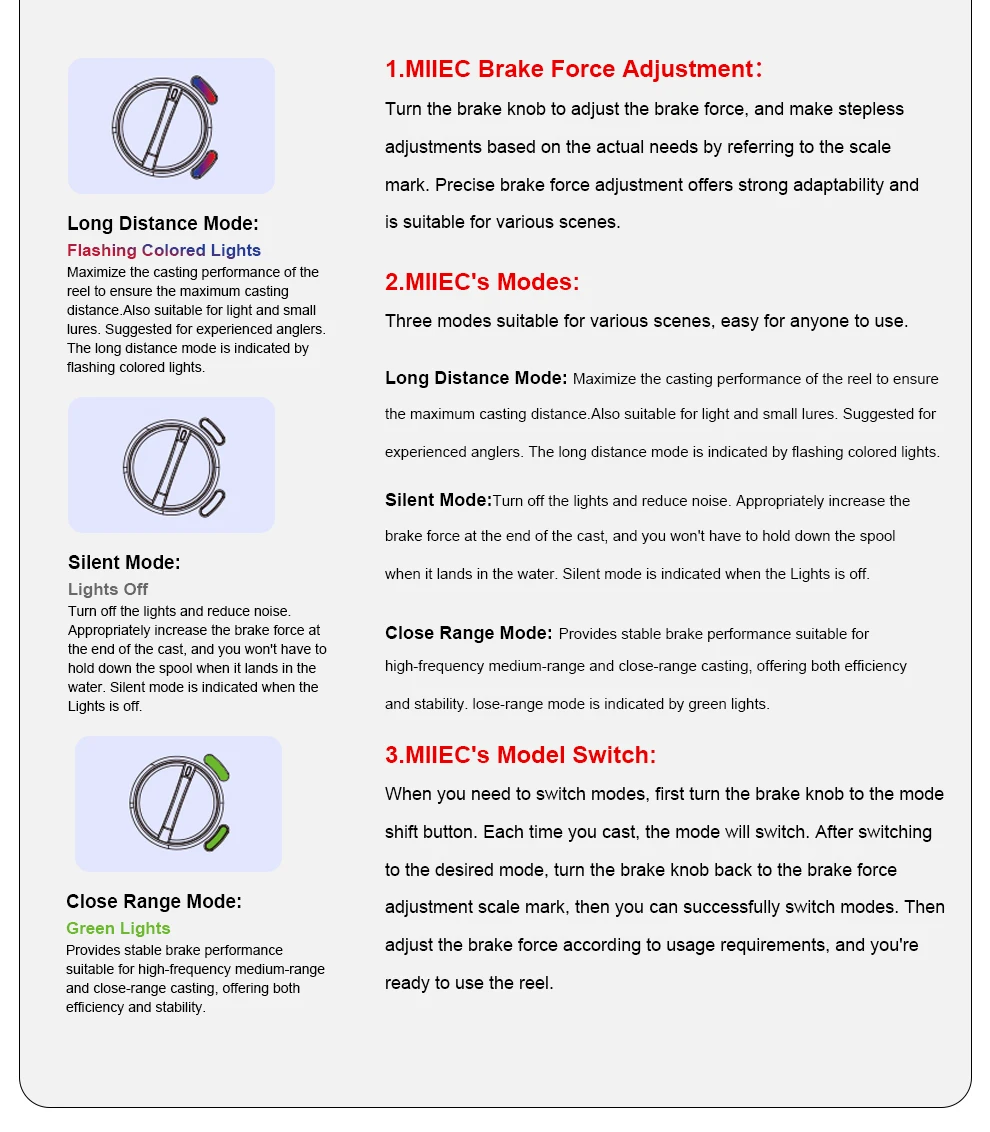

1.MIIEC Brake Force Adjustment：Turn the brake knob to adjust the brake force, and make stepless adjustments based on the actual needs by referring to the scale mark. Precise brake force adjustment offers strong adaptability and is suitable for various scenes.
2.MIIEC's Modes: Three modes suitable for various scenes, easy for anyone to use.
Long Distance Mode: Maximize the casting performance of the reel to ensure the maximum casting distance.Also suitable for light and small lures. Suggested for experienced anglers. The long distance mode is indicated by flashing colored lights.
Silent Mode: Turn off the lights and reduce noise. Appropriately increase the brake force at the end of the cast, and you won't have to hold down the spool when it lands in the water. Silent mode is indicated when the Lights is off.
Close Range Mode: Provides stable brake performance suitable for high-frequency medium-range and close-range casting, offering both efficiency and stability. lose-range mode is indicated by green lights.
3.MIIEC's Model Switch: When you need to switch modes, first turn the brake knob to the mode shift button. Each time you cast, the mode will switch. After switching to the desired mode, turn the brake knob back to the brake force adjustment scale mark, then you can successfully switch modes. Then adjust the brake force according to usage requirements, and you're ready to use the reel.

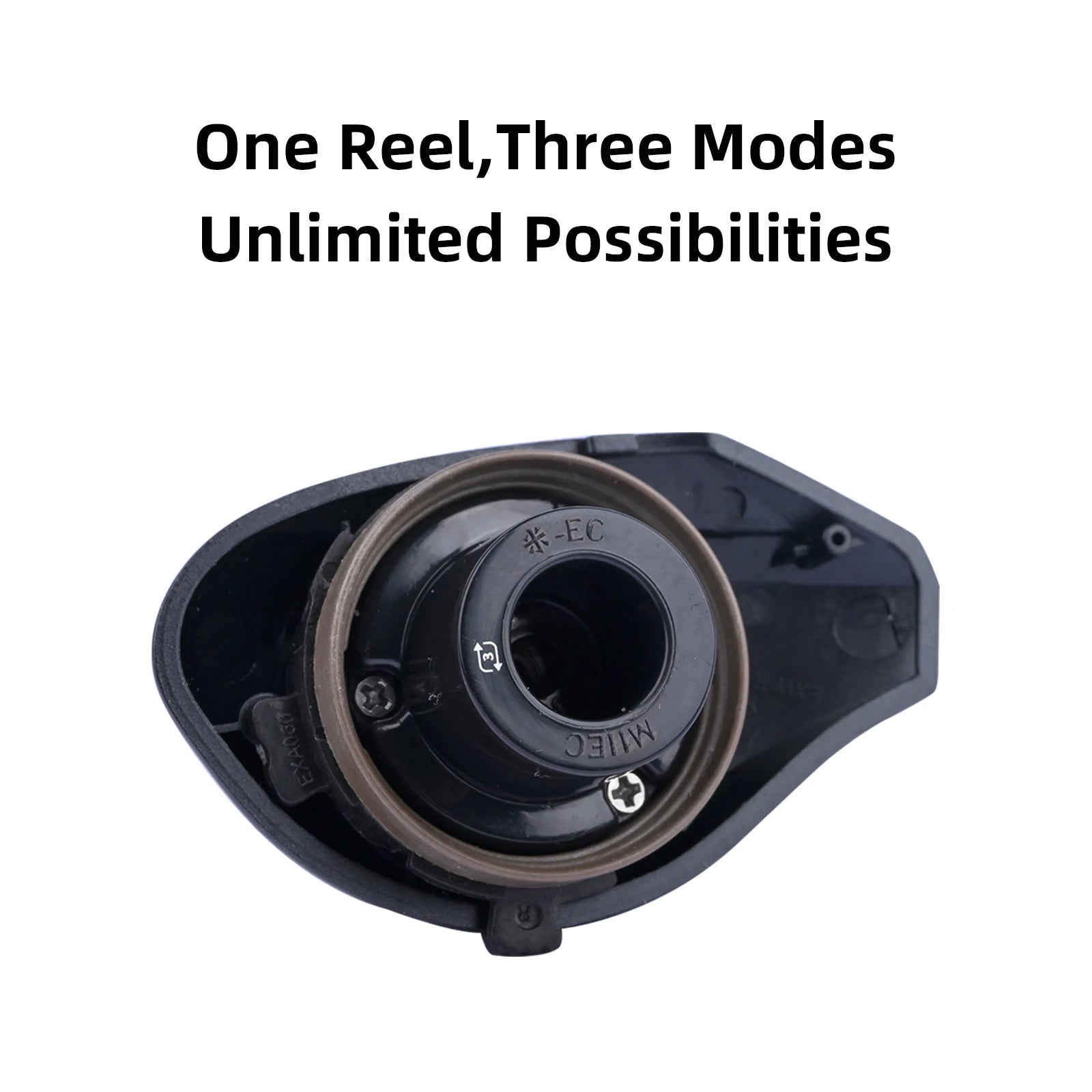

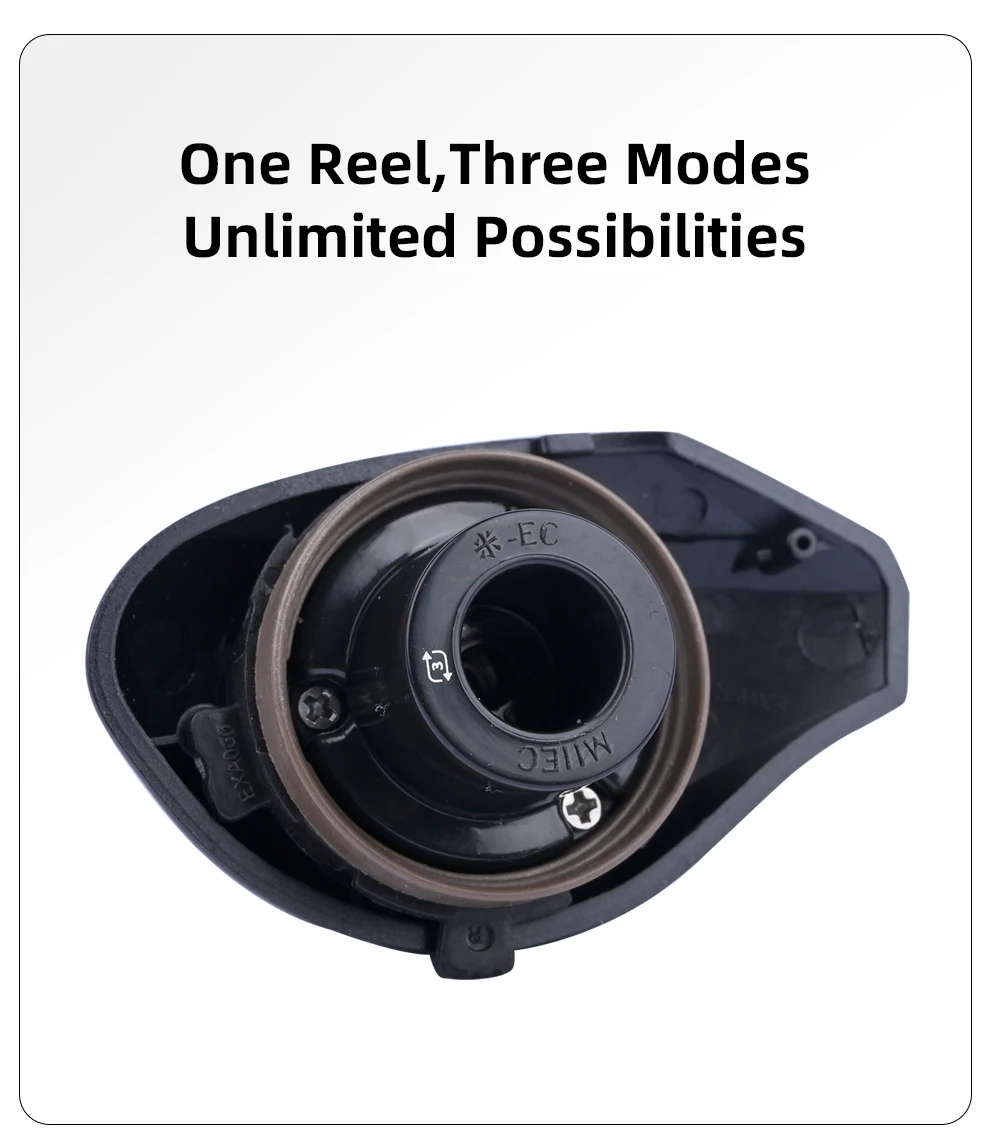

One Reel,Three Modes,Unlimited Possibilities
Turning the knob to switch modes.
Various modes adapt to different casting methods and fishing scenes.

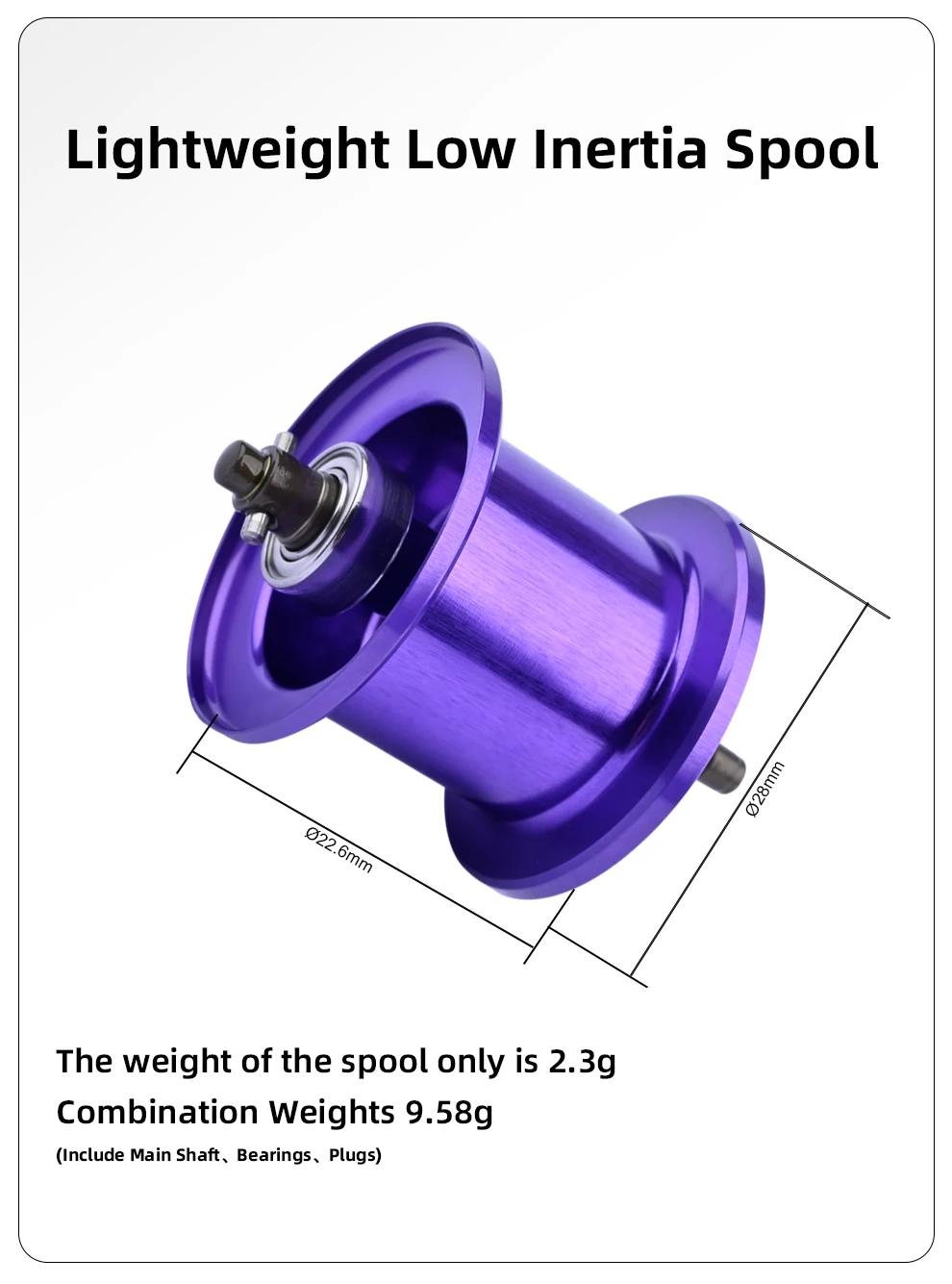

Lightweight Low Inertia Spool
The inertial torque of the spool affects the casting performance of the fishing reel, so we have taken the following measures to reduce inertial torque: using higher-strength 7075 aircraft grade aluminum , combined with precision machine tool processing, cutting, and casting.
Precise cutting process combined with improved structural design materials has enabled the thin-walled design of the spool without reducing its strength, which further reduces the weight of the spool, significantly increases the casting distance, and provides a smoother casting experience.
Due to the significant reduction in weight and inertia, the required brake force has also been reduced, improving casting performance and casting experience. Even lighter lures accelerate immediately to maximum speed and reach the target point with precision.
The weight of the spool only is 2.3g
Combination Weights 9.58g
(Include Main Shaft、Bearings、Plugs)

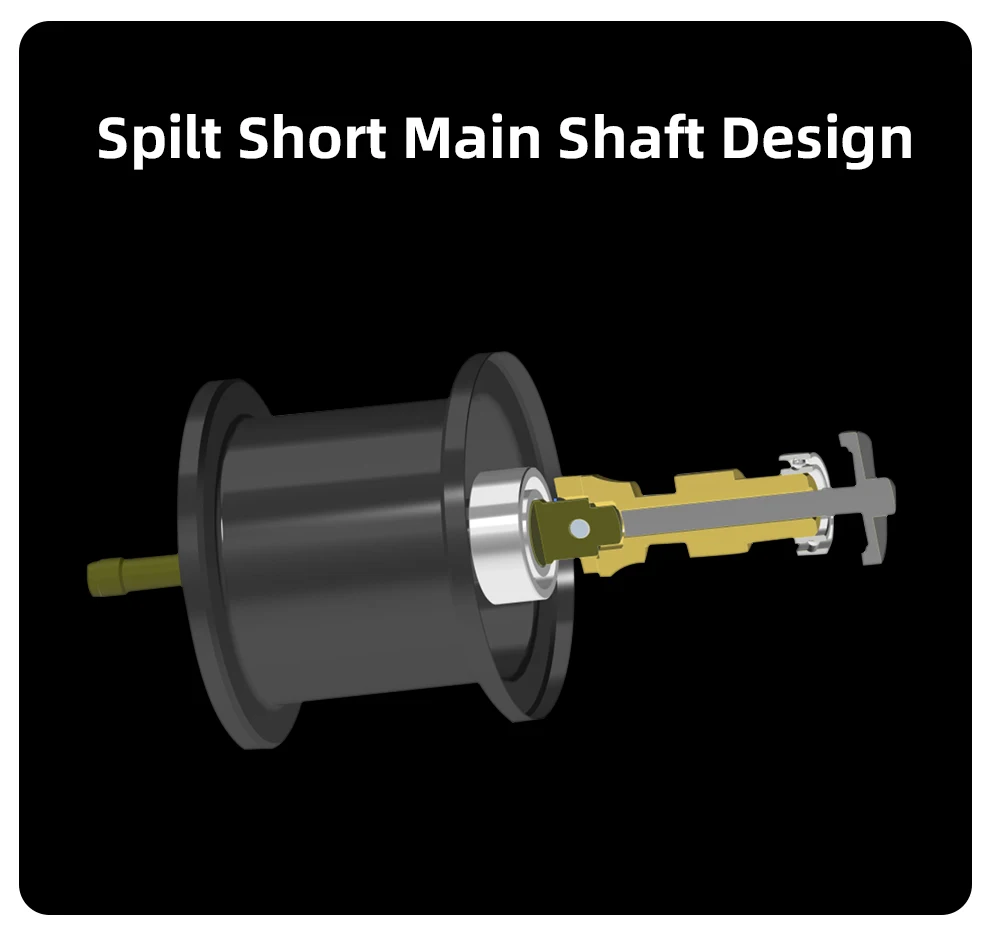

Spilt Short Main Shaft Design
Without a spool shaft design, the spool is supported only by the bearings at both ends. Because there is no spool shaft, the friction during the spool's rotation is nearly zero, resulting in an ideal rotation effect.Two-piece split main shaft effectively reduces casting vibrations and noise, improves casting stability, and increases casting distance.

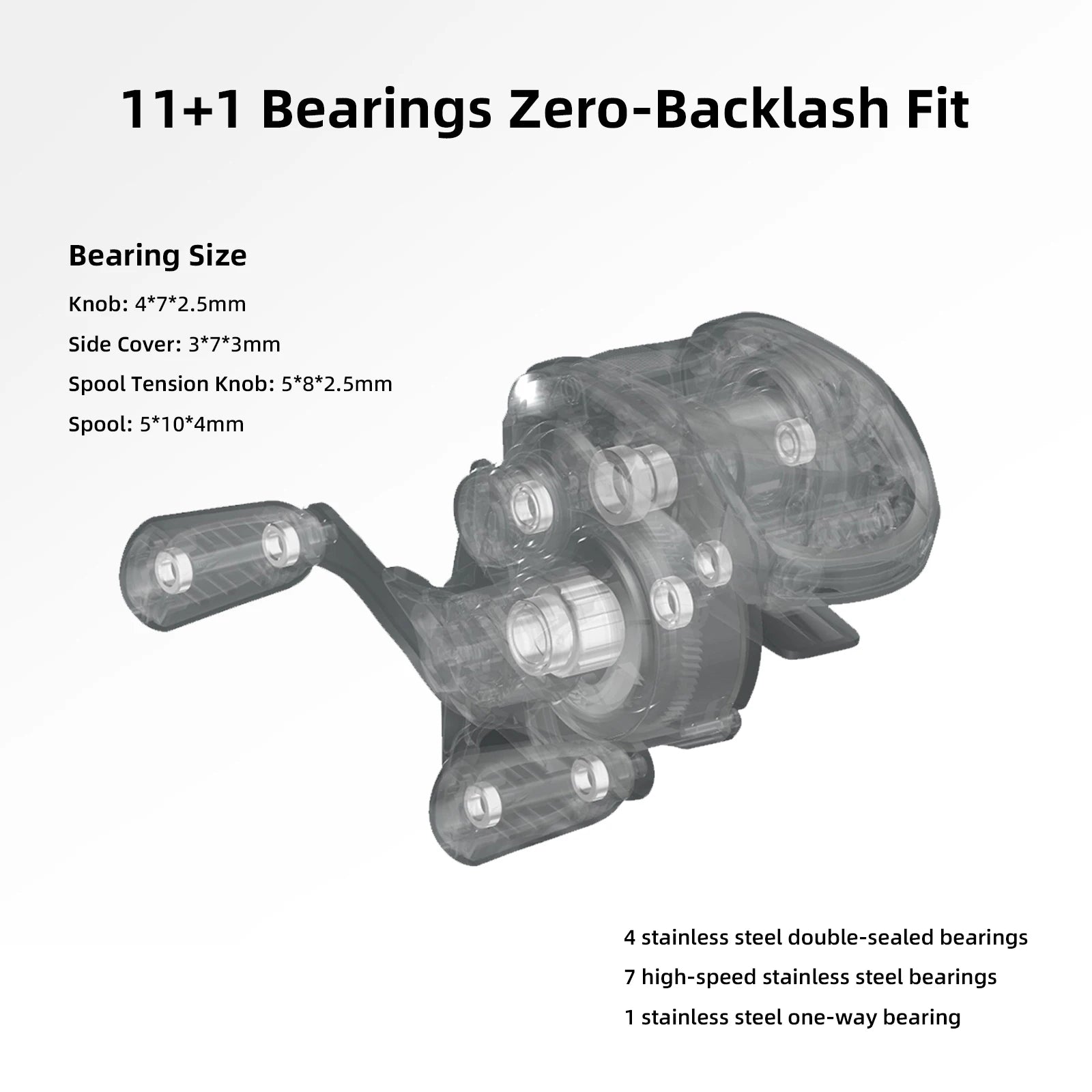

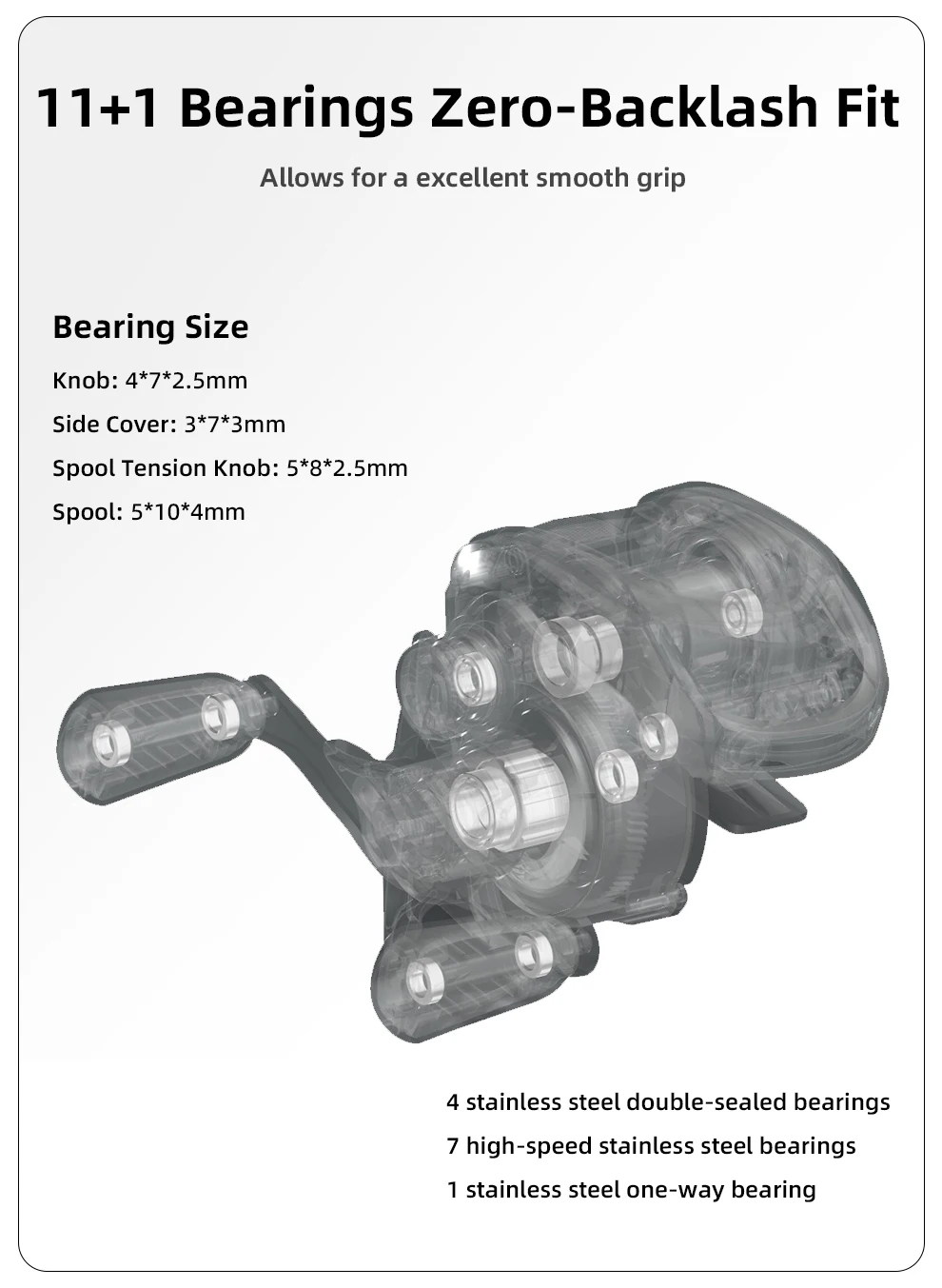

11+1 Bearings Zero-Backlash Fit
Allows for a excellent smooth grip
Bearing Size
Knob: 4X7X2.5mm
Side Cover: 3X7X3mm
Spool Tension Knob: 5X8X2.5mm
Spool: 5X10X4mm
4 stainless steel double-sealed bearings
7 high-speed stainless steel bearings
1 stainless steel one-way bearing"

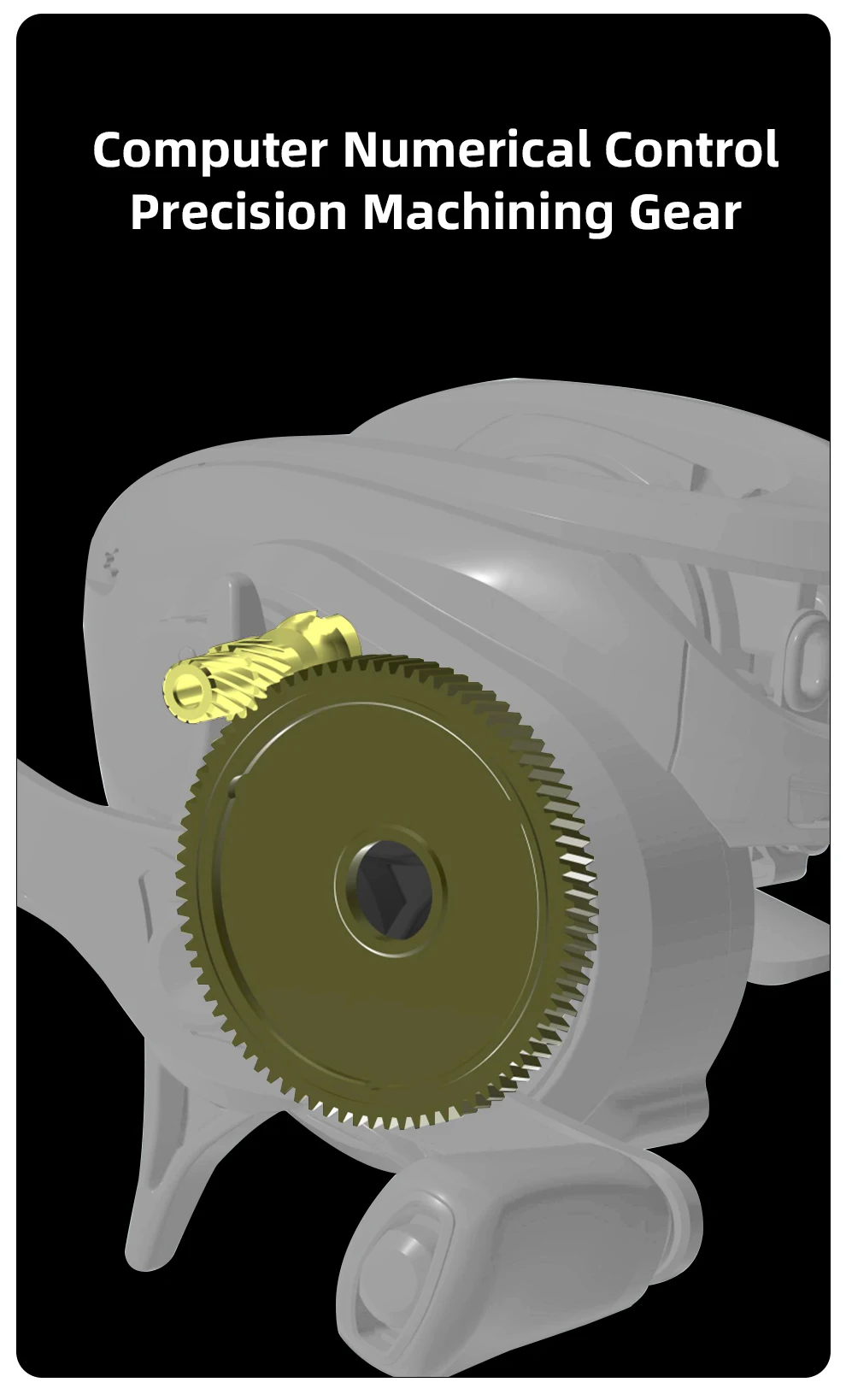

Computer Numerical Control Precision Machining Gear
The main gear is made of 7075 aircraft grade aluminum,precision machining by using industry-grade HANAYIN60 gear hobbing machine and imported hobbing cutters. The small gears are made of hard copper alloy with excellent mechanical properties. High-quality materials and exquisite process bring smooth casting experience, and improve gear strength and durability.

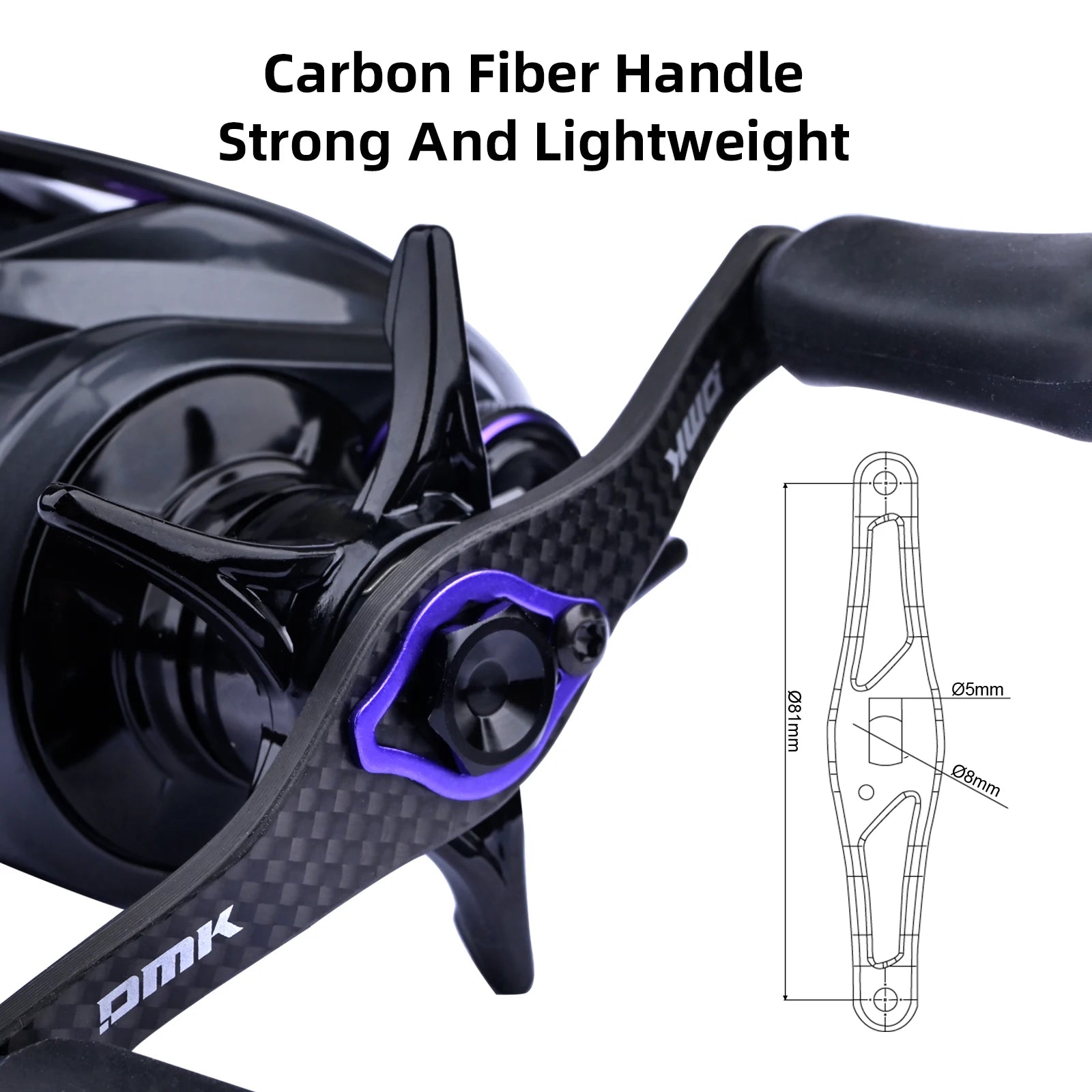

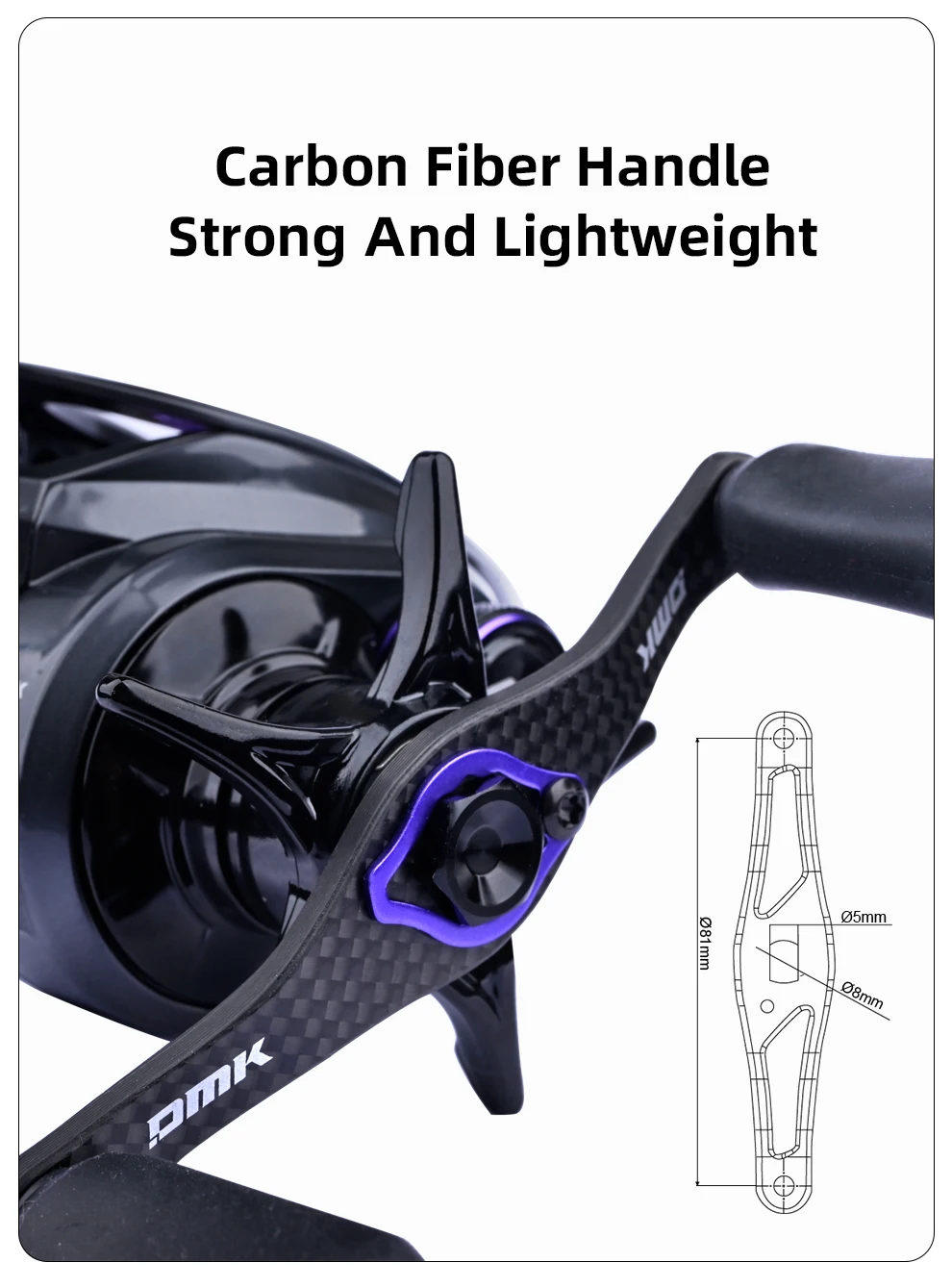

Carbon Fiber Handle Strong and Lightweight
Carbon fiber handle combines light weight and strength, providing a greater degree of lightweighting.

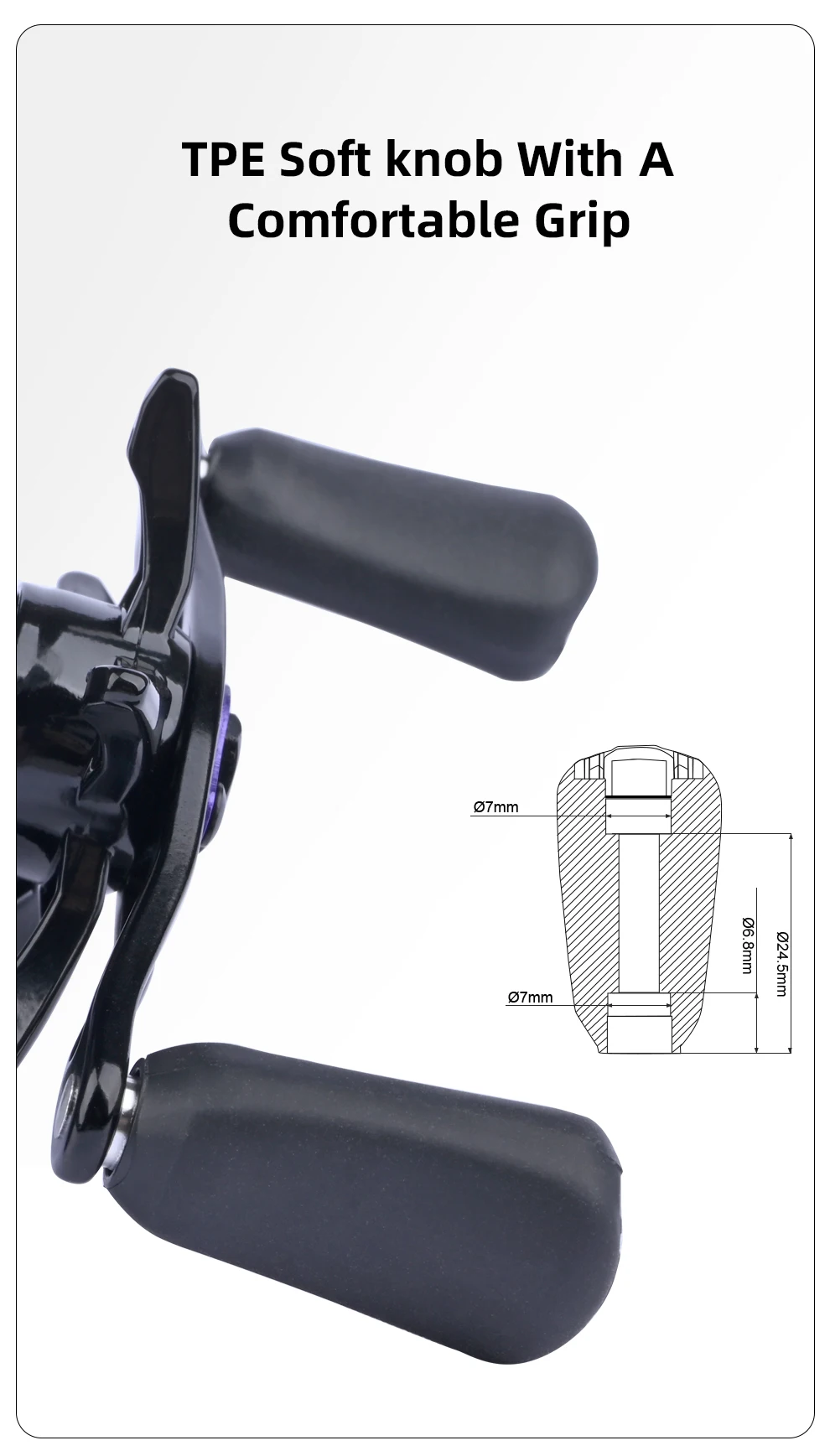

TPE Soft knob With a Comfortable Grip
Featuring a streamlined I-shaped design with a strong grip, the rear of the handle is slightly open, making it easier for fingers to wrap around and exert force.The curvature of the fingertip contact surface increases the contact area, preventing fatigue even during a long time of gripping.TPE material, skin-friendly and smooth, maintains optimal grip even in wet or slippery conditions, ensuring you never miss a chance to catch a fish.

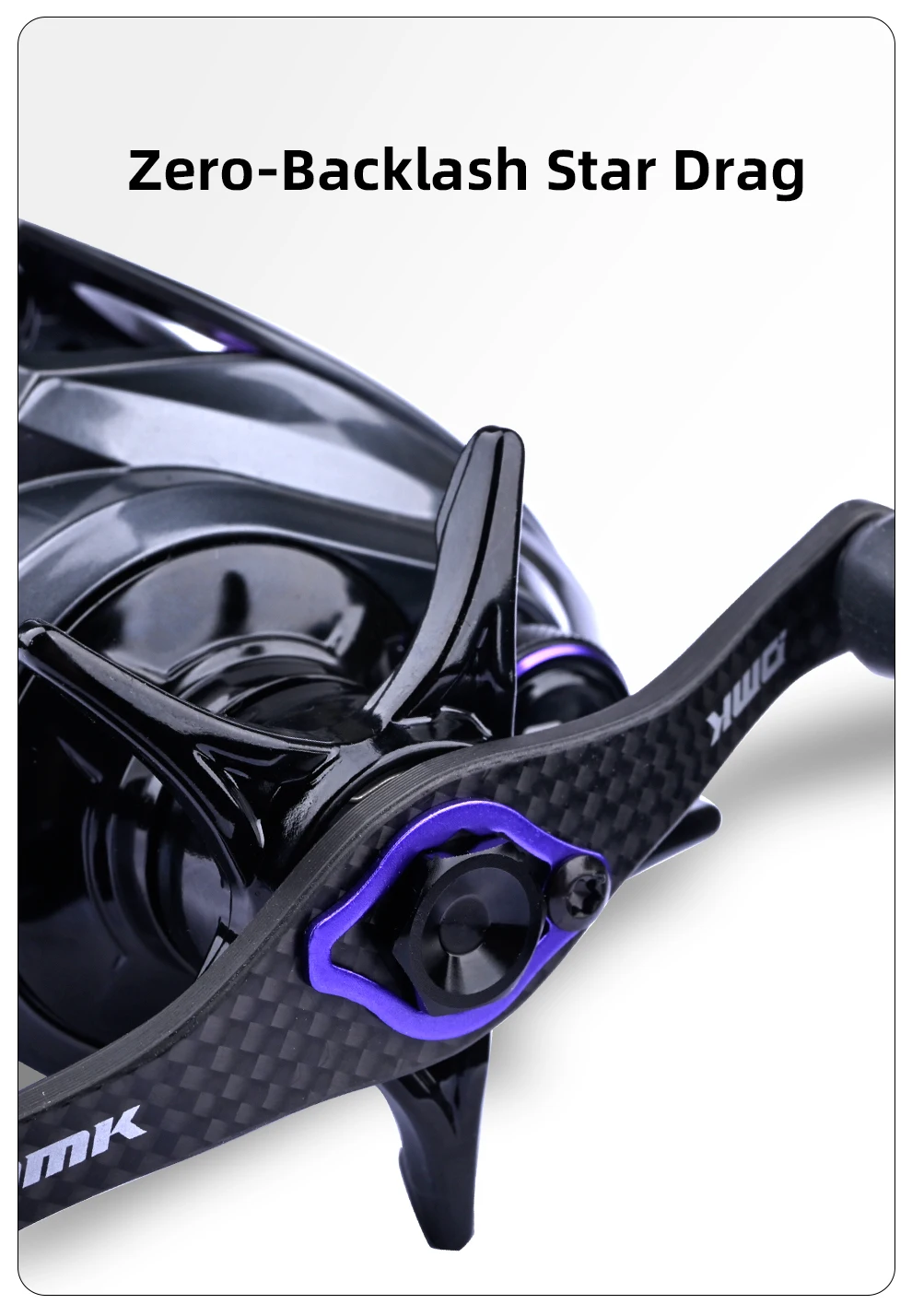

Zero-Backlash Star Drag
The position of the star drag doesn't change during adjustment.
Smaller gap,more stable use.
Clear sound,more delicate adjustment.

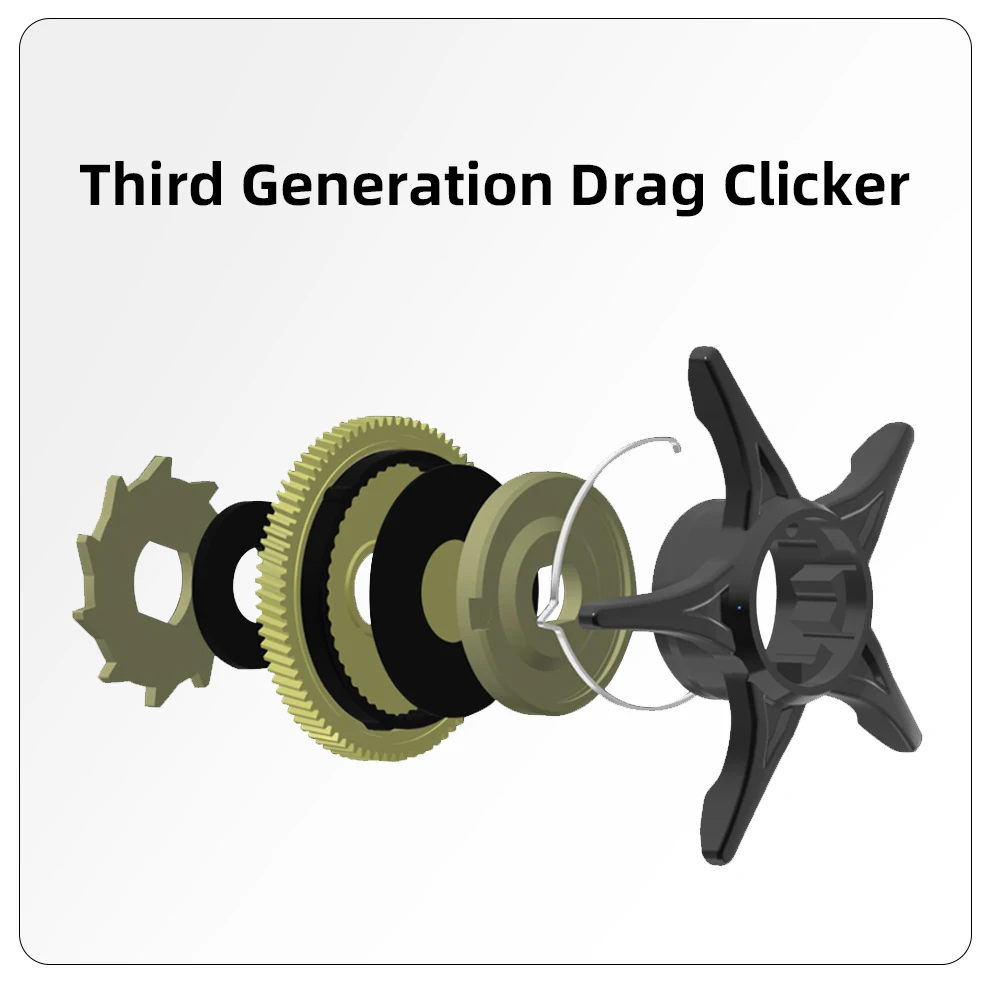

DMK Third Generation Drag Clicker
When force is released, a crisp sound is emitted, clearly indicating the release status to the angler so that they can adjust the brake force immediately.The crisp alarm sound can be heard clearly in all kinds of environments, and this exciting sound also adds to the sensory stimulation of catching fish.
